Lemon Star Products Information

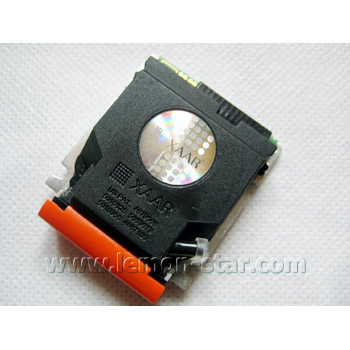

XAAR XJ-128 series printhead
Item: XAAR XJ-128 printhead Product Name: XAAR XJ-128 series printhead
Descriptions:

we supply brand new original XAAR printhead, made in U.K

include:
1)XAAR XJ-128/200 (blue)
2)XAAR XJ-128 plus(purple)
3)XAAR XJ-128/360 (gray)
4)XAAR XJ-128/360 (black)
5)XAAR XJ-500
6)XAAR XJ-126
7)XAAR Proton (xaar 382)
8)XAAR Electron



 XAAR 128 series printhead colour insert guide


Description XJ128/80 XJ128/80-W XJ128/40-5.5 XJ128/40-W Unit
Colour of insulator Blue Purple Black Light Grey
Nozzle plate Non-wetting Wetting Non-Wetting Wetting -
Active nozzles 128 -
Nozzle density 185 npi
Nominal drop volume 80 80 40 40 pl
Typical firing frequency 4.2 5.5 5.5 8.3 kHz
Printhead weight (dry) 15.5 g
Dimensions (W x D x H) 37.2 x 40.8 x 11.3 mm
