SUPER Banner welder (2013.AK)
Item: SUPER Banner Welder Product Name: 2013.AK VERSION
Descriptions:

This equipment can be called hot air welder, heat welder, banner welder, welder, hot air tool, hot air welding machine, welding machine, seaming machine, hot seaming machine and seamer, it is the professional designs for welding flex banner, PE, PVC, plastic cloth, printing cloth ,etc.
2013.AK version banner welder machine without mucilage, constructed simple, work temperature and self-move speed is adjustable, the operation is also simple,and needs not much guide to operate. it is easy to maintain,will be a more efficient companion for advertising material instead of the 502 glue.

Application:
Welding Flex banner, PE, PVC, Canvas, Plastic cloth, Printing cloth ,Sailcloth, etc.

SMART FUNCTION:
It can turn off automatic when no people operate.
If no work in 15 minutes, it will turn off the heater at first,
then after more 3 minutes, power off automatic.

Tips:
New model the wind power can adjust.
if you weld thick flex, choose high wind power.
if you weld thin flex, then choose lower wind power.

How to use:
1) Immobilize both ends of each disjunctive poster surface with something such as stick belt or clamp, and leave  about 30-40mm wide overlap edge on each disjunctive poster surface edge.
2) Turn on the machine, prepare warm up about 2 minutes.
3) Bring up the machine, and place the roll at the end of the overlap edge.
4) According to quality and thickness of the poster surface material, set up temperature and speed.
5) Consider the ground circumstance, test and adjust the proper temperature and speed.
6) Handle the fuse machine gun down and insert it between the two poster banner edges, then the machine start running, after go pass the overlap edge, the two disjunctive banners will be well joined in one.

LEMON STAR VIDEO DEMO
----------------------------------------------------------------------------------
AK banner welder demo 2


----------------------------------------------------------------------------------
AK Banner Welder Demo


Spec list as below:

  • Electric heating: Max.1300W
  • Motor: 15W
  • Voltage: 220V/50HZ or 110V/60HZ
  • Welding Area: 35mm
  • Temperature Scope: 0-600 degree
  • Working Temperature: 20 - 500 degree
  • Gross Weight: 10 KGS
  • Packing size: 480mm *320mm *320mm
  • Package: Hard plastic case with carton outside .
Machine detail photos.

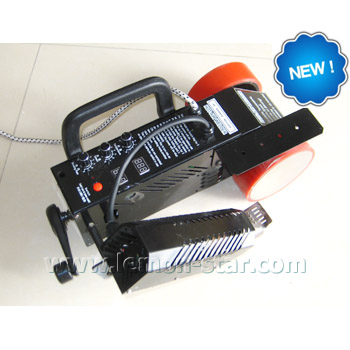

Banner welder machine
Banner welder machine details

Below is the banner welded sample.
Banner welding sample details
Banner welding sample details
Banner welding sample details
Packing: Carton
                 Hard plastic case with carton outside .

Banner welding sample
